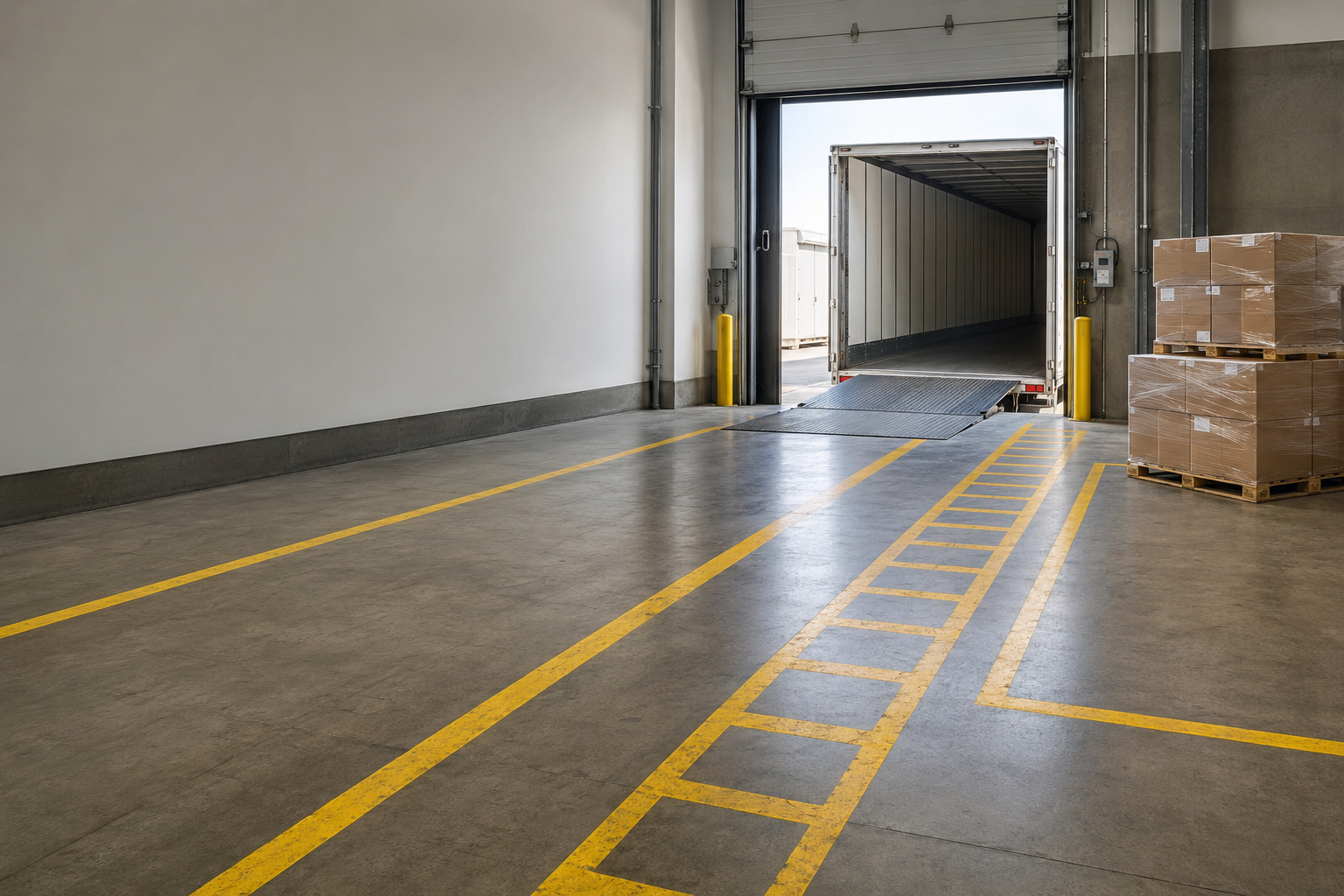

Loading Dock Safety Markings: What Areas Should Be Identified?



A loading dock concentrates several movements in a small area: forklifts enter trailers, pedestrians cross work zones, freight waits for transfer and dock equipment changes position. Markings help people recognize where each activity belongs, but isolated stripes are not enough. The system must connect the approach aisle, dock face, pedestrian route and staging plan.

Begin with an observation of actual traffic. Note where operators turn, where pedestrians naturally cross, where trailers obstruct sightlines and where freight accumulates during peak receiving. The markings should support a safe workflow that people can realistically follow—not an idealized map that conflicts with daily operations.



1. Dock edges and open positions.

The elevated edge is the most critical visual boundary. OSHA’s powered-industrial-truck guidance recommends painting dock edges to improve visibility and keeping forklifts a safe distance from the edge. Use a high-contrast edge treatment that remains recognizable under the facility’s lighting and dirt conditions. When a dock position is open or unprotected, use the required barrier or protective system; an edge stripe alone does not prevent a fall or vehicle run-off.

2. Forklift approach and travel lanes.

Mark the path leading to each bay, including turning zones where the truck must align with a trailer. Lines should preserve sufficient clearance for the truck, load, building features and nearby workers. Avoid creating a lane that directs a forklift through a pedestrian waiting area or encourages backing toward an unprotected edge.

3. Pedestrian walkways and crossings.

Where pedestrians must enter the dock area, provide a route that minimizes exposure to powered equipment. Mark crossings at locations with the best available sightlines, then support them with stop points, mirrors, signs, gates or other controls when traffic warrants. A painted walkway does not create physical separation, so review whether guardrails or a different route are feasible.



4. Freight staging and no-storage zones.

Outline where inbound and outbound freight may wait, and place a visible limit on how close staging can extend toward travel lanes, dock edges, doors and emergency equipment. Distinguish approved staging from “keep clear” areas. This helps supervisors correct encroachment before pallets create a blind corner or force pedestrians into equipment traffic.

5. Dock plate, leveler and restraint operating areas.

Identify the footprint and operating clearance for dock levelers, plates, vehicle restraints, controls and related equipment. Keep these areas free of pallets, carts and loose materials so workers can inspect and operate the equipment. Marking should reinforce—not replace—manufacturer instructions, lockout/tagout requirements and inspection procedures.

6. Trailer approach, parking and driver waiting areas.

Outside markings should help drivers align with bays, recognize pedestrian routes and avoid equipment or structural hazards. Designate a safe place for drivers to report or wait so they do not walk between trailers or through active forklift paths. Weather, snow, sunlight and tire traffic can reduce outdoor marking visibility, so inspection frequency may need to be higher.

7. Emergency and restricted-access areas.

Mark and keep clear access to exits, fire extinguishers, electrical equipment, spill-response supplies and emergency shutoffs. Also identify zones beneath overhead doors, around compactors and near maintenance access points where storage or standing could create a hazard. Use the facility’s established signage and color system so the meaning remains consistent.





Create a short facility legend that assigns one meaning to each color, line pattern and floor symbol. OSHA uses yellow as the basic caution color for physical hazards such as tripping, falling, striking and caught-between conditions, but many other warehouse color conventions are facility choices rather than universal OSHA mandates. Document those choices, post the legend where needed and include them in orientation.

High contrast matters more than copying a generic color chart. Evaluate the floor color, lighting, contamination, wear and whether workers have color-vision limitations. Use text, shapes, pictograms or signs to reinforce critical meanings instead of relying on color alone.







✓  Dock-edge contrast is visible from the normal forklift approach.

✓  Open positions have the required barrier or protective control—not markings alone.

✓  Forklift turns do not intrude into designated pedestrian waiting areas.

✓  Crossings are visible from every approach and not routinely blocked by trailers or freight.

✓  Staged pallets remain within their boundaries during peak volume.

✓  Dock plates, levelers, restraints and control panels have usable operating clearance.

✓  Outdoor markings remain visible after weather, snow removal and heavy vehicle traffic.

✓  Damaged tape, faded paint and obsolete markings are repaired or removed before they become ambiguous.



Floor paint and tape communicate location and movement, but they cannot secure a trailer, support a dockboard, stop a forklift or physically protect an open edge. Dock safety also depends on equipment condition, trailer-restraint procedures, housekeeping, lighting, operator training and communication with drivers. Where consequences are severe, favor engineering controls and physical separation over visual warnings alone.

Review markings whenever the process changes. New lift trucks, different pallet sizes, higher receiving volume, door modifications or a revised staging system can make the original layout misleading. Employee feedback is valuable because operators and dock workers see sightline and clearance problems that may not appear on a floor plan.



Effective loading-dock markings answer three questions at a glance: Where may equipment travel? Where may people walk or wait? What space must remain clear? Start with the dock edge and the highest-consequence conflicts, then build outward through travel lanes, crossings, staging and equipment zones. A consistent, maintained system improves everyday decisions without asking workers to interpret a different rule at every bay.

Regulatory references: OSHA 29 CFR 1910.22, 1910.144, 1910.145, 1910.176 and 1910.178; OSHA Powered Industrial Trucks eTool—Loading Docks and Pedestrian Traffic. Confirm site-specific obligations with a qualified safety professional.
