How to Prevent Paper Towel and Dispenser Compatibility Problems

✓ THE 30-SECOND VERSION

· Record the dispenser manufacturer and model number before shopping for refills.

· Match the format first, then width, diameter, core size, fold dimensions and sheet characteristics.

· Do not force an oversized roll into a cabinet; compression changes how the towel feeds.

· Approve refills with a controlled trial and keep the verified specification with purchasing records.

WHY “PAPER TOWEL” IS NOT A COMPLETE SPECIFICATION

Two refills can look nearly identical on a case label and behave very differently in the same dispenser. Small changes in roll diameter, core opening, folded width, paper strength or perforation spacing affect how the towel moves through the opening or cutting mechanism. Proprietary dispensers may also accept only a specific refill family, while universal dispensers still have dimensional limits.

Compatibility should be treated as a system: dispenser + refill + operating conditions. If any part is mismatched, the result may be jams, torn sheets, multiple dispensing, empty-looking dispensers that still contain product or damaged feed components.

THE COMPATIBILITY CHECK: FIVE STEPS

Step	What to verify	Why it matters
1. Identify	Manufacturer, model, manual and current refill	Prevents guessing from appearance alone
2. Classify	Hardwound, center-pull, C-fold, multifold or kitchen roll	Each format feeds differently
3. Measure	Width, diameter, core and folded size	Determines whether the refill physically fits
4. Check function	Perforation, cut length, sensor or feed mechanism	Determines whether the towel dispenses cleanly
5. Trial	Load, dispense and monitor a full refill	Finds real-world problems before bulk purchasing

MEASUREMENTS TO RECORD

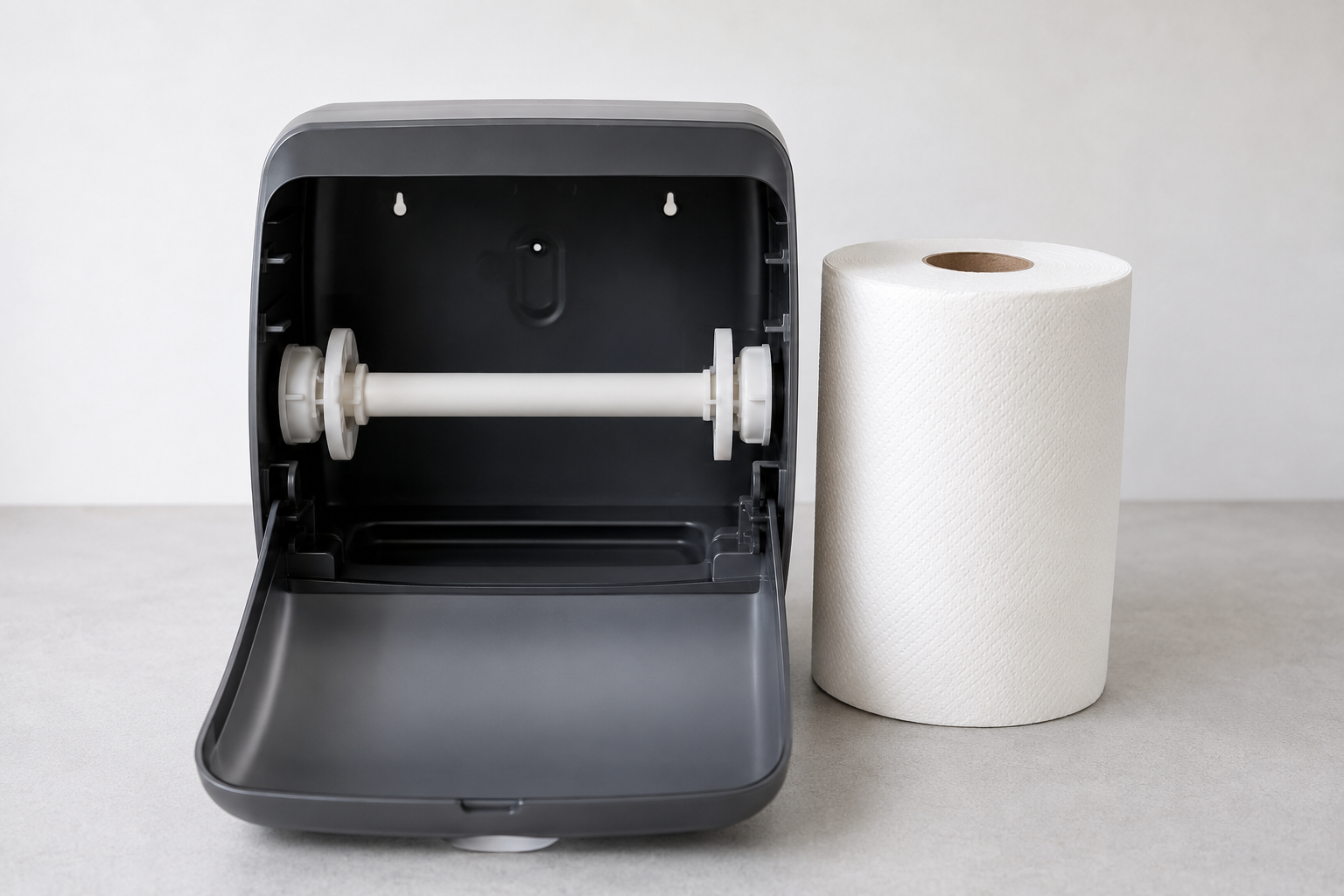

For hardwound roll towels

· ✓ Roll width: must fit between the dispenser guides without binding.

· ✓ Maximum outside diameter: must allow the cover to close without pressing on the roll.

· ✓ Core inside diameter: must match the spindle, hub or core adapters.

· ✓ Core style: standard core, plug or proprietary feature may affect engagement.

· ✓ Paper basis and strength: overly weak paper may tear before the mechanism advances it.

For center-pull towels

· ✓ Roll diameter and height: the roll must rotate or collapse freely inside the chamber.

· ✓ Core removal method: some rolls require a removable center plug or specific starting direction.

· ✓ Sheet perforation: must release at the force produced by the dispensing opening.

· ✓ Tail preparation: the first sheet must be threaded correctly without twisting or bunching.

For folded towels

· ✓ Folded width and depth: determines whether the stack sits flat and feeds through the slot.

· ✓ Stack height: overfilling compresses towels and increases dispensing force.

· ✓ Fold pattern: C-fold and multifold towels do not present the next sheet the same way.

· ✓ Open sheet size: affects hand-drying performance and how many towels users take.

ⓘ DID YOU KNOW?

A refill can fit inside a dispenser and still be incompatible. Functional fit includes clean feeding, reliable separation, cover clearance and acceptable dispensing force—not just whether the product fits in the cabinet.

SYMPTOMS AND LIKELY CAUSES

Symptom	Likely compatibility cause	First corrective action
Towel tears inside dispenser	Paper strength, perforation or opening mismatch	Confirm specified refill and rethread correctly
Several towels dispense	Fold pattern, stack orientation or low resistance	Check fold type and loading direction
Roll will not advance	Width binding, wrong core or feed engagement	Measure roll and inspect spindle contact
Cover will not close	Outside diameter or stack height too large	Do not compress; use the rated capacity
Sensor runs but no towel appears	Roll not engaged or paper misses feed rollers	Reload using the model instructions
Dispensing becomes harder over time	Overfilled stack, paper dust or restricted opening	Reduce fill and clean the dispensing path

LOADING PRACTICES THAT PREVENT PROBLEMS

Even a compatible refill can fail when it is loaded incorrectly. Staff should follow one documented method for each dispenser model. Remove packaging and shipping bands completely, orient the roll or stack as shown inside the cabinet, and avoid topping off folded-towel dispensers until the remaining stack is nearly depleted. Mixing old and new folded towels can disrupt interleaving and change the pressure at the dispensing slot.

For roll systems, confirm the towel is captured by the feed rollers or routed through the center opening before closing the cover. Advance several test sheets. The towel should dispense without scraping the cabinet, pulling the roll sideways or requiring excessive force.

⚠ COMMON MISTAKE

Problem: ordering by a generic description such as “8-inch roll towel.”

↓

Why it happens: width is treated as the only important dimension.

↓

Better approach: match width, maximum diameter, core, feed method and any approved-refill requirement to the exact dispenser model.

CREATE A COMPATIBILITY RECORD

Once a refill passes the trial, store the dispenser model, approved item number, dimensions, loading notes and a photo of the correctly loaded product in the purchasing record. Label the inside of the dispenser or the supply shelf with the approved refill number. This prevents substitutions based only on appearance and gives maintenance staff a quick reference when problems occur.

If a supplier proposes an alternate, require the same specification check and trial. “Equivalent” should mean functionally equivalent in the installed dispenser, not merely similar in sheet count or case size.

CONCLUSION: VERIFY BEFORE YOU STANDARDIZE

Paper towel compatibility problems are preventable when the dispenser is treated as equipment rather than a generic container. Identify the model, match the refill format and dimensions, follow the correct loading process and test performance under normal use.

A few minutes of verification protects the facility from unusable inventory, service calls and avoidable waste. The resulting compatibility record also makes future purchasing faster because staff can evaluate alternates against a complete specification instead of starting from guesswork.

✓ KEY TAKEAWAY

A refill is compatible only when it fits, feeds, separates and dispenses reliably. Record the verified system specification and require every substitute to meet it.
